200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter

Name: 200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter
Brand: Crowns
Price: 1200 USD

Buy cheap 200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter product

Brand Name : Crowns

Certification : ISO 9001; CE

Place of Origin : China

MOQ : 1set

Price : $1200-$5000/set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000SETS/PER YEAR

Delivery Time : 20 working days

Packaging Details : Wooden box

Working Pressure : 1.2Mpa

Scraper Material : PTFE

Thickness Of Cake : 30mm

Filter Rating : 27-98%

Filter Voltage : 220V/380V/415V

Filtration Micro Rating : 25um-1500um

Contact Now

200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter

Introduction

automatic self-cleaning filter is a type of filtration system that removes impurities or particles from a fluid (such as water, oil, or air) without manual intervention. These filters are designed to operate continuously or intermittently and utilize mechanisms to remove accumulated debris from the filter element or surface automatically.

usage:

Water treatment: industrial water filtration; Power plant condensate filtration.

Metal processing: cutting fluid and coolant filtration;

Fine chemicals: catalyst, fermentation liquid filtration; Filtration of cosmetics raw materials

Petrochemical industry: Oil and fuel filtration.

200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter

Product Parameterss

Model	Dimension	Inlet&outlet	Max. flow	Pressure	Micron	Motor
CS-250-50	φ273*1000	DN25~DN50	50 t/h	10bar	≥50μm	0.18kw/RV040
CS-300-100	φ325*1200	DN80~DN125	100 t/h	10bar	≥100μm	0.37kw/RV063
CS-400-150	φ426*1300	DN150	200 t/h	10bar	≥200μm
CS-480-200	φ480*1550	DN200	300 t/h	10bar	≥300μm
CS-530-250	φ530*1650	DN250	450 t/h	10bar	≥300μm	0.75kw/RV075
CS-600-300	φ600*1750	DN300	550t/h	10bar	≥300μm
CS-700-350	φ700*2000	DN350	700t/h	10bar	≥500μm
CS-800-400	φ800*2150	DN400	1000t/h	10bar	≥800μm
CS-900-450	φ900*2300	DN450	1200t/h	10bar	≥1000μm
CS-1000-500	φ1000*2500	DN500	1500t/h	10bar	≥1500μm
CS-1100-600	φ1100*2600	DN600	1800 t/h	10bar	≥3000μm	1.5kw/RV090
CS-1200-700	φ1200*2800	DN700	2300 t/h	10bar
Note: Material :galvanized steel /Stainless steel ; Customization Accepted ;

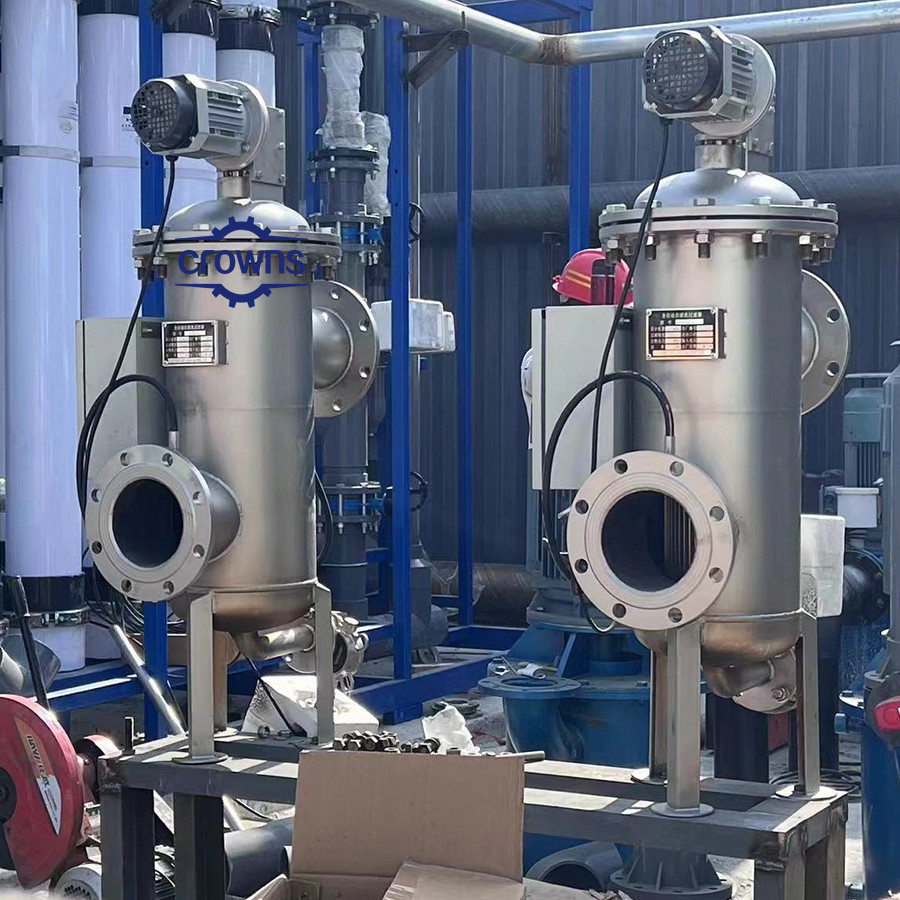

Detailed Images

200 Micron Carbon Steel Automatic Self Cleaning Water Filter Auto Back Flush Filter Irrigation Filter

FAQ

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
